Toyota Stackers
Pedestrian / Rider Powered Stackers (24 volt)
The Toyota Stackers are designed for use when racking away products up to 5.4 m, as an internal transportation truck, loading and unloading vehicles and basic order picking.

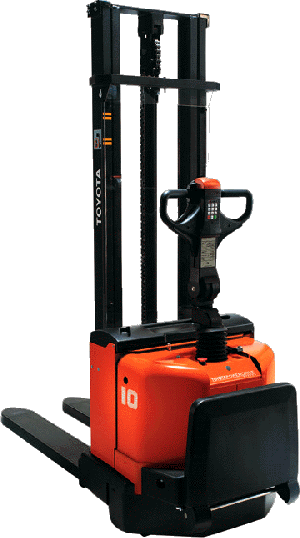

 7SM10


7SM12F

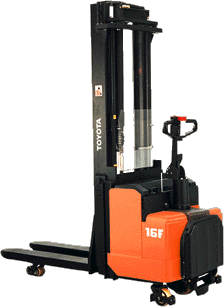

SLL16F

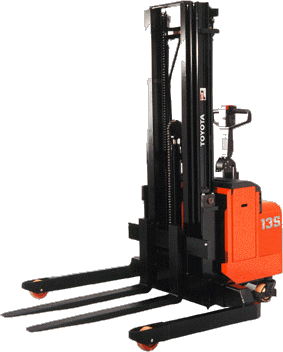

SLL13.5S


PEDESTRIAN / RIDER
POWERED STACKERS (24 VOLT)
MODEL 7SM10 7SM12 7SM12S 7SM12F 7SM16D SLL12.5 SLL16 SLL13.5S SLL12.5F SLL16F
LOAD CAPACITY Kg 1000 1200 1200 1200*1 1200*1*4 1250 1600 1350 1250 1600*2
LOAD CENTRE mm 600 600 600 600 600 600 600 600 600 600
MAXIMUM LIFT HEIGHT mm 3300 4150 4100 3700 2100 5400 5400 5400 5400 5400
CHASSIS WIDTH mm 800 800 800 800 770 850/1150 850/1150 1160/1760
1070/1670 		850/1150 850/1150
TURNING RADIUS (MIN.) mm 1482/ 1574 1479/ 1571 1519/ 1611 1685/ 1777 1786/ 1878 1580/ 1630 1580/ 1630 1505/ 1555 1590/ 1640 1720/ 1770
TRAVEL SPEED (Without load/ with rated load) km/u 6,0/ 5,3 6,0/ 5,3 6,0/ 5,3 6,0/ 5,0 6,0/ 5,0 6,0/ 5,0*3 6,0/ 5,0 6,0/ 5,0*3 6,0/ 5,0*3 6,0/ 5,0/ 4,3*2


*1 1600kg capacity of support arm lift with forks in lowered position
*2 2000kg capacity of support arm lift with forks in lowered position
*3 fast speed 8 kph versions available
*4 800+800 kg rated capacity, fork and support arm lift (double stack
