| Capacities from 1200 kg to 2500 kg are available, with lift heights up to 10500mm on heavy-duty models. Trucks can also be configured to provide effective, reliable operation in cold storage, drive-in racking and other customer-specific applications. |
|
|
|

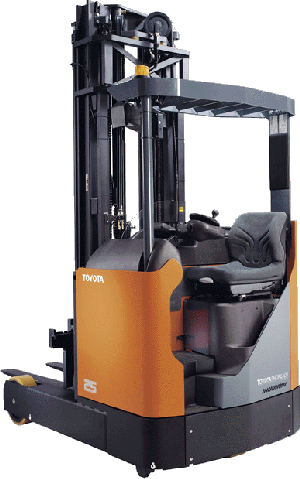

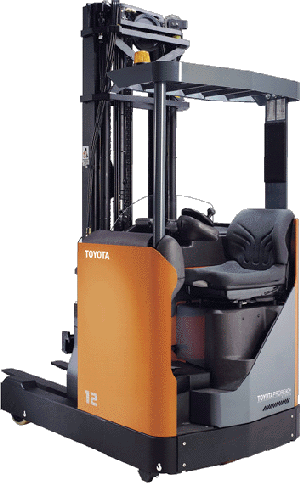

| REACH TRUCK (48 VOLT) 1.2 - 1.5 TON SERIES |
||||||
| MODEL | 7FBRE12 | 7FBRE14 | 7FBRE16 | 7FBRE20 | 7FBRE25 | |
| LOAD CAPACITY | Kg | 1200 | 1400 | 1600 | 2000 | 2500 |
| LOAD CENTRE | mm | 600 | 600 | 600 | 600 | 600 |
| CHASSIS WIDTH | mm | 1100 | 1100 | 1270 | 1270 | 1270 |
| TURNING RADIUS (OUTSIDE) | mm | 1649 | 1649 | 1640 | 1690 | 1815 |
| OVERHEAD GUARD HEIGHT | mm | 2166 | 2166 | 2166 | 2266 | 2266 |
| LENGTH TO FORK FACE | mm | 1237*1 | 1307*1 | 1243*1 | 1346*1 | 1494*1 |
*1with
sideshift |
||||||
