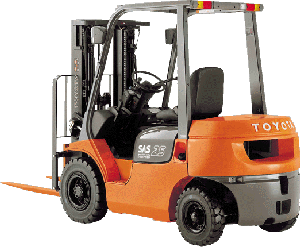

Toyota Engine Powered Forklifts
7FGF/7FDF - 1.5-3.5 Ton Series
The 7FGF / 7FDF truck is the first one equipped with SAS as a standard - raising everyone's expectation.

Features

  • Full floating Power train - comfortable seat
  • SAS - System of Active stability
  • Easy access to service parts

Benefits

  • Comfort
  • Productive
  • Safe
  • Reliable - Minimize unavailability time





 7FGF/7FDF

7FGF/7FDF
1.5 - 3.5 TON SERIES
MODEL 42-7FGF15
02-7FDF15		 42-7FGF18
02-7FDF18		 42-7FGF20
02(62)-7FDF20		 42-7FGF25
02(62)-7FDF25		 42-7FGF30
02(62)-7FDF30		 42-7FGJF35
02-7FDJF35
LOAD CAPACITY kg 1500 1750 2000 2500 3000 3500
LOAD CENTRE mm 500 500 500 500 500 500
OVERALL WIDTH mm 1070 1070 1150 1150 1240 1290
TURNING RADIUS (OUTSIDE) mm 1960 1980 2170 2240 2400 2500
OVERHEAD GUARD HEIGHT
 mm 2080 2080 2110 2110 2170 2180
LENGTH TO FORK FACE mm 2250 2280 2545 2600 2745 2810
