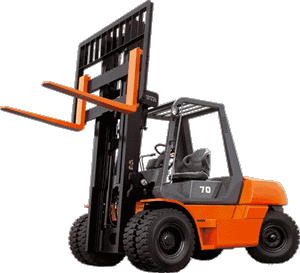

Toyota Engine Powered Forklifts
5FG/5FD - 5.0-8.0 Ton Series
In addition to a comfortable driving position, the 5FG/5FD features can be defined as a safe and solid design : a stability that inspires reliability and job confidence.

Features

  • Techno comfort
  • High performance through Toyota engines
  • Durability: solid construction with a full floating engine
  • Service ability made easy thanks to easy access to all service parts

Benefits

  • Comfort
  • High power low cycle time
  • Safe product to work with
  • High availability of the trucks by reducing downtime and/or repair time




5FG/5FD

5FG/5FD
5.0 - 8.0 TON SERIES
MODEL 5FG50
5FD50		 5FG60
5FD60		 5FD70 60-5FD80
LOAD CAPACITY kg 5000 6000 7000 8000
LOAD CENTRE mm 600 600 600 600
OVERALL WIDTH mm 1995 1995 1995 2160
TURNING RADIUS (OUTSIDE) mm 3350 3350 3400 3700
OVERHEAD GUARD HEIGHT mm 2440 2440 2440 2615
LENGTH TO FORK FACE mm 3460 3505 3585 3930
